STANDARD SPEC SHEET

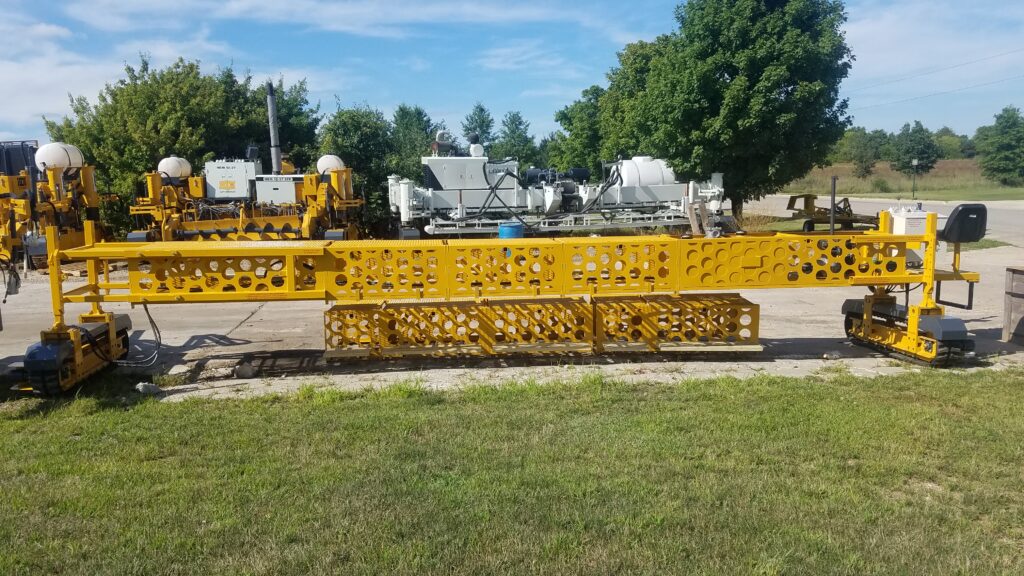

PWB - POWERED WORK BRIDGE


Honda Engine* -

  • 24 hp (17.9 kW) Tier III
  • enclosed engine compartment
  • engine sound proofing

Hydraulic Oil Reservoir - 31 gallon (117 liter)

Fuel Reservoir - 16.6 gallon (63 liter)

Hydraulic Pump System

  • double stage hydraulic pump
  • flow divider isolates right travel system from left travel system

Main Frame

  • superior structural strength
  • 30-inch (76 cm) wide expanded metal walkway
  • 20-inch (61 cm) deep tubular frame
  • bolt together sectional design
  • 12 ft. (3.65 m) main frame (paving width 12 ft.)
  • 30-inch (76 cm) wide structural frame
  • frame extensions available: 2 ft. (61 cm), 4 ft. (122 cm), 10 ft. (304 cm), custom sections
  • 12 ft. - 45 ft. (3.65 m - 13.7 m) widths standard
  • frame legs adjustable for 0 to 24-inch (0 - 61 cm) slabs

Rubber Track Drive

  • proportional controls for infinite variability of speed
  • direct hydraulic drive, no chains or sprockets
  • 1-inch (230 mm) wide continuous rubber track
  • 115 ft. (35 m) per minute maximum travel speed

Lower Work Platform

  • lower level to assist with hand working of slab
  • treated wood for durability and comfort
  • located at bottom of bridge frame for easy access to concrete slab

Operator’s Platform

  • travel system and pressure gauges hydraulic controls: travel, drag lift, auto steer
  • operator’s seat for safety and comfort
  • engine controls on console
  • safety railing for access to walk platform

*Engine make determined by customer need and availability



Optional Equipment

(not included in base machine)

Hydraulic Burlap (or astro-turf) Drag

  • lift controlled at operator’s platform
  • single lever control

Automatic Forward Steering System

  • 1 hydraulic stringline sensor
  • steer from right or left-hand side of machine
  • automatic and manual steering, controlled from operator's platform

Automatic Rear Steering System

  • 1 hydraulic sensor

Water System for Burlap Drag

  • electric water pump with 25 gallon (95 liter) tank
  • all required hoses and wiring
  • spray pipe with fogging nozzle tips
  • sediment strainer

Form Riding Wheels (in lieu of tracks)

Transport Axle

  • hydraulic controls
  • removable transport hitch

Frame Inserts without Spray

  • 24-inch (61 cm)
  • 48-inch (122 cm)
  • 120-inch (3.04 m)

Critical Spare Parts Package

2-year Filter Package

Material and specifications subject to change without notification
